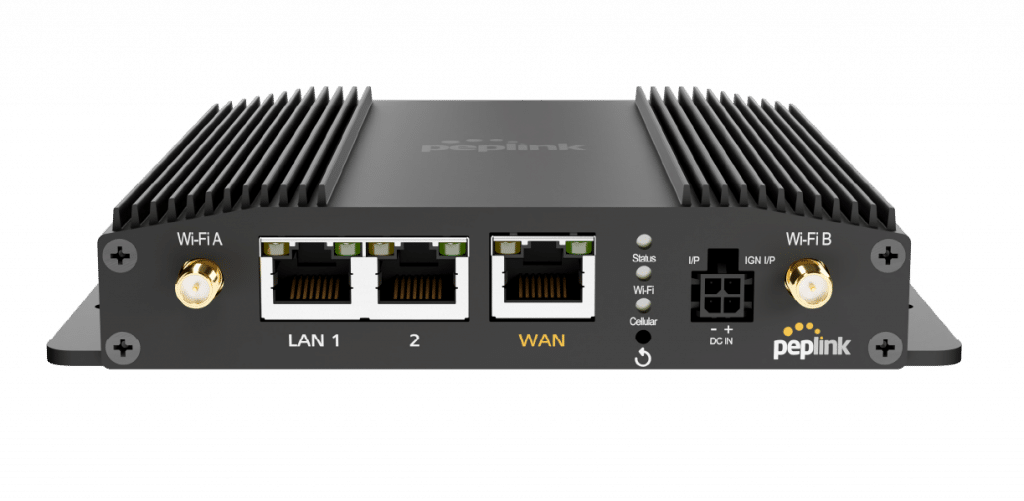

MAX BR1 Pro 5G

msxbr1pro

Der Klassiker durchbricht die Schallmauer.

The “classic goes sonic“, why? The BR1 Pro 5G is integrated with the new generation multi-core CPU ensuring delivery of gigabit speeds. Achieving 800% faster speeds than the original BR1 Classic.

Video abspielen

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged.

Lorem Ipsum

Simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

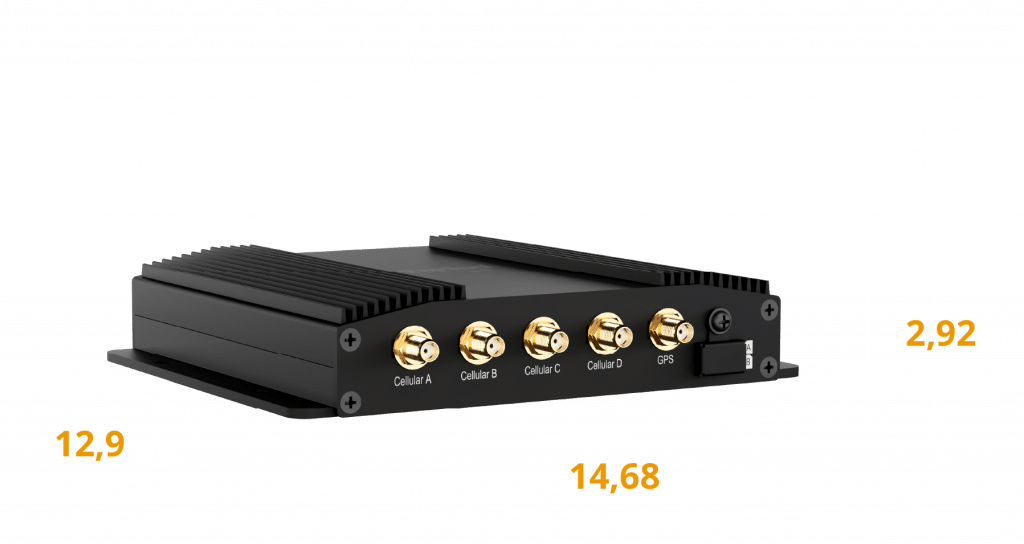

Low-Profile Form Factor

Simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Available with PrimeCare

Simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Experience on-demand connectivity with SpeedFusion Connect

Enabling the benefits of SpeedFusion has just gotten easier with SpeedFusion Connect. Allowing you to leverage the LTE of multiple connections and SpeedFusion technologies all under one subscription. Enabling backup connectivity has never been so simple!

Certified at:

SoftwarePepwave MAX Firmware
WANSupport for PPPoE, Static IP, DHCP
WAN Link Health Check
Bandwidth Allowance Monitor
Support for Dynamic DNS services
WAN Port Convertible into LAN Port
LANDHCP Server for LAN Clients
Extended DHCP Option
DHCP Reservation
DNS Proxy for LAN Clients
VLAN on LAN Support
SecurityStateful Firewall
DoS Prevention
Web Blocking
Complete VPN SolutionPepVPN/SpeedFusion
-Hot Failover
-Site-to-Site VPN
-256-bit AES Encryption
-Pre-shared Key Authentication
-Dynamic Routing
-X.509 Certificate Support *
IPsec VPN (Network-to-Network) ^
-X.509 Certificate Support *
Advanced QoSIndividual Bandwidth Limit
Application Prioritization
-SIP, HTTPS, VPN QoS
-Custom Application QoS
Global Positioning SystemIntegrated GPS
Device Location Map
Location Tracking Data with InControl 2
Fleet Management with InControl 2
NetworkingNAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP
Captive Portal SupportSupport for Wired and Wireless LAN clients
Support RADIUS Authentication
Time and Usage Quotas on Open Access Mode
Built-in Customizable Splash Page
Device ManagementWeb Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client & Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3
PRODUCT CODEEMBEDDED MODEMSREGIONS5G BANDSLTE BANDS
MAX-BR1-PRO-5GD-T-PRM1x 5GPrimary: APAC, EMEA
Compatibility: Global
5G (NSA) Sub 6Ghz:
n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
MAX-BR1-PRO-5GH-T-PRM






1x 5GPrimary: North America*
Compatibility: Global
5G (NSA) Sub 6Ghz:
n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79
B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71

*US Carrier Certification: AT&T, T-Mobile, US Cellular, Verizon(Pending).

Product CodeDescription
PRM-MAX-BR1-PRO-5G-1Y1-Year PrimeCare Subscription
PRM-MAX-BR1-PRO-5G-2Y2-Year PrimeCare Subscription
PRM-MAX-BR1-PRO-5G-4Y4-Year PrimeCare Subscription
ACW-63410ft Direct Wire DC Cable
ANT-MB-42G-S-W-67-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White)
ANT-MB-42G-S-B-67-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (Black)



  • 1x BR1 Pro 5G
  • 1x 12V2A Power Supply (ACW-632)
  • 4x LTE/5G Antennas (ACW-234)
  • 2x Wi-Fi Dual Band Antenna (ACW-341)
  • 1x GPS Antenna (ACW-232)
